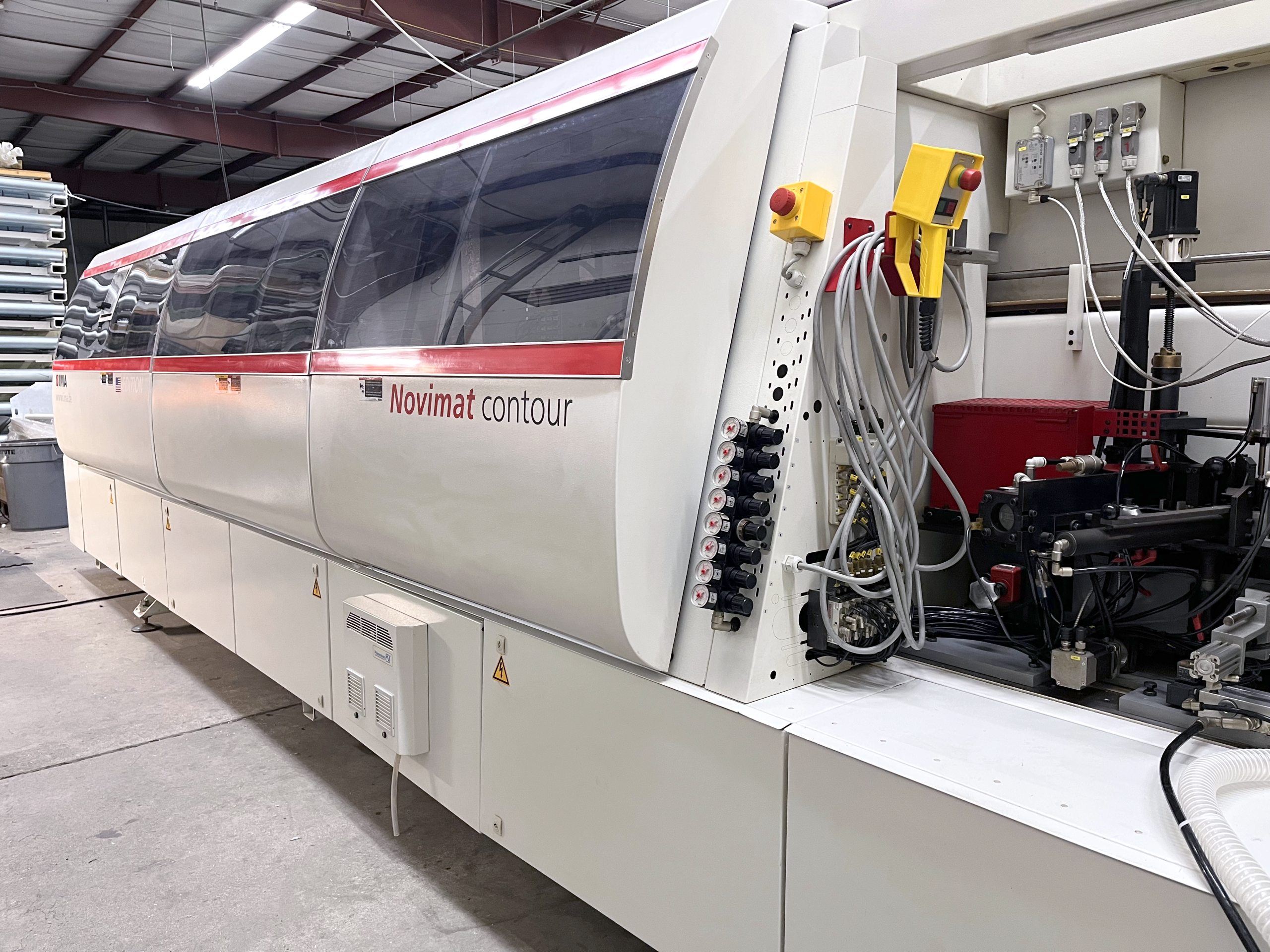

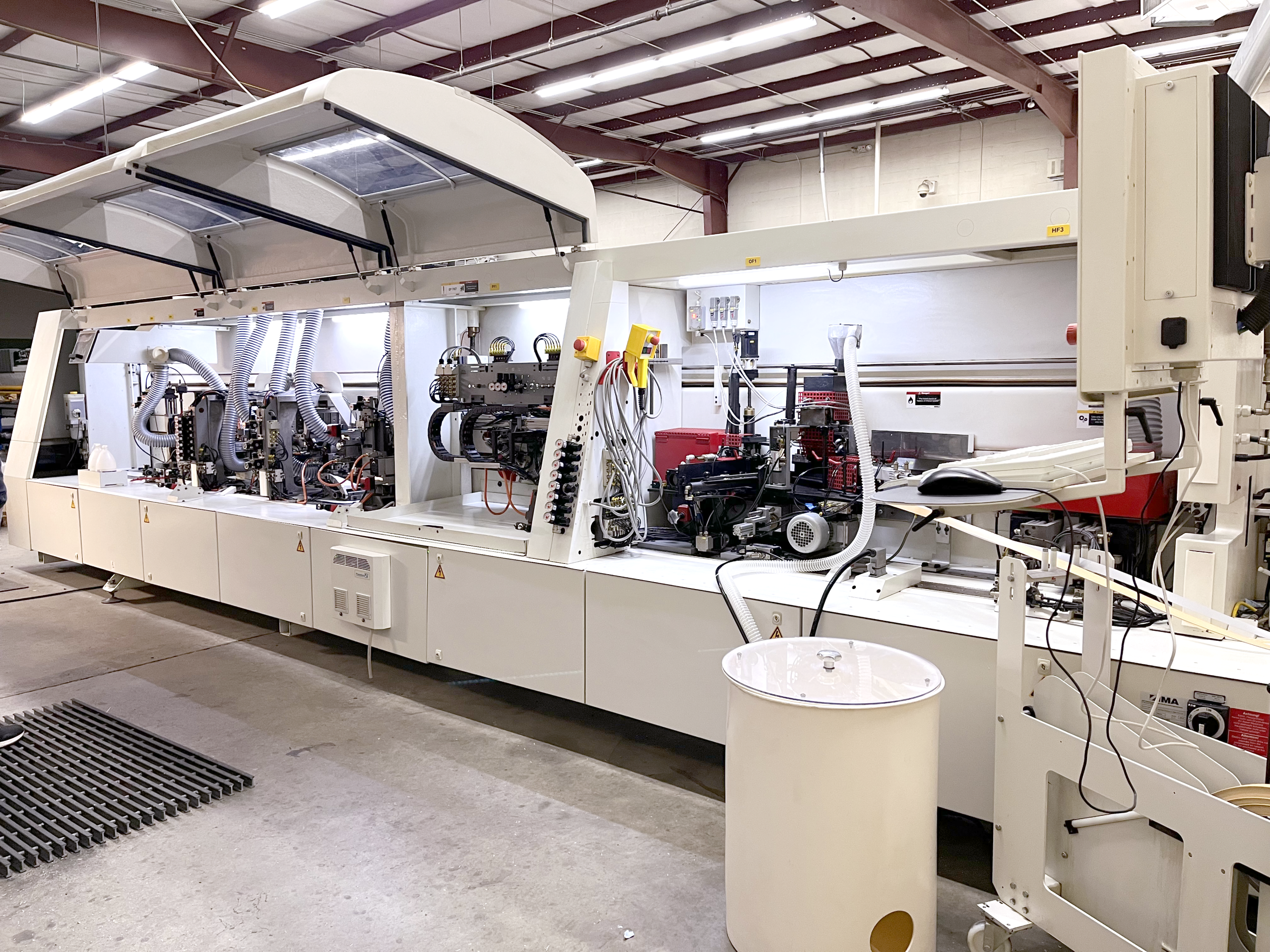

IMA Novimat Contour L20

Specifications:

• Single sided edgebander for EVA and PUR glue
• Joint-milling, gluing unit with double coil magazine, top pressure mounted end trimming, pre/flush-trimming, corner rounding, profile– and glue scraper, buffing and smoothing units
• Tooling: Multi Milling Unit, 2mm corner rounding unit
• Edgeband capabilities:5 to 3mm coiled edgebanding
• Edging Strips and Lipping: 3mm – 20mm
• Min Edge tape height:14mm
• Max Edge tape height:65mm
• Min Panel Thickness:8mm
• Max Panel Thickness:60mm
• Smallest Workpiece:65mm x 300mm (at max panel thickness of 25mm)
• Processing Speed: 20 m/min with corner rounding
• Processing Speed: up to 30 m/min only end trimming
• Working height:960mm

Scope of Refurbishment:

• Detailed cleaning of machine
• Replace or repair any damaged items
• Repaint scratched areas
• In depth run-off after rebuild process has been completed
