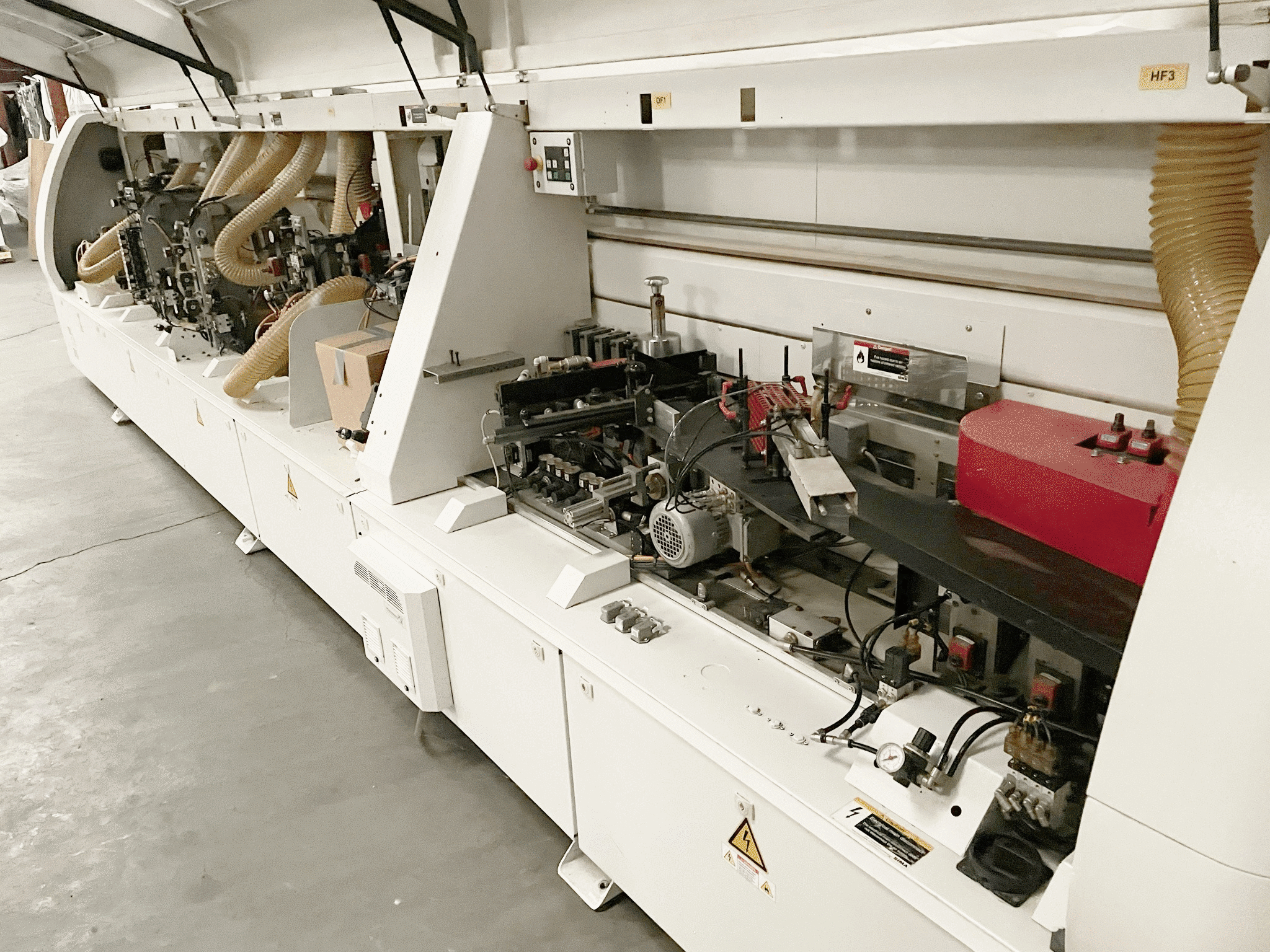

IMA Advantage 500L Edgebander

Machine #: 50278

Download Spec SheetRequest A Quote
All Factory-Certified Machines are fully updated physically and technologically and come with a 6-month factory warranty.
View Warranty Details

Specifications:

  • Single sided edgebander for EVA and PUR glue
  • Joint-milling, gluing unit with double coil magazine, top pressure mounted end trimming, pre/flush-trimming, corner rounding, profile– and glue scraper, buffing and smoothing units
  • Tooling: Multi Milling Unit, 2mm corner rounding unit
  • Edgeband capabilities: 0.5 to 3mm coiled Edgebanding
  • Min Edge tape height: 12mm
  • Max Edge tape height: 65mm
  • Min Panel Thickness: 8mm
  • Max Panel Thickness: 60mm
  • Smallest Workpiece: 65mm x 150mm (at max panel thickness of 25mm)
  • Processing Speed: 14 – 20m/min
  • Working height: 900mm

Scope of Refurbishment:

  • Detailed cleaning of machine
  • Replace or repair any damaged items
  • Repaint scratched areas
  • In depth run-off after rebuild process has been completed
Operating Voltage

3PE 60Hz 480V

Rated Power

18kW

Nominal Current

39A

Compressed Air

7-8 bar
